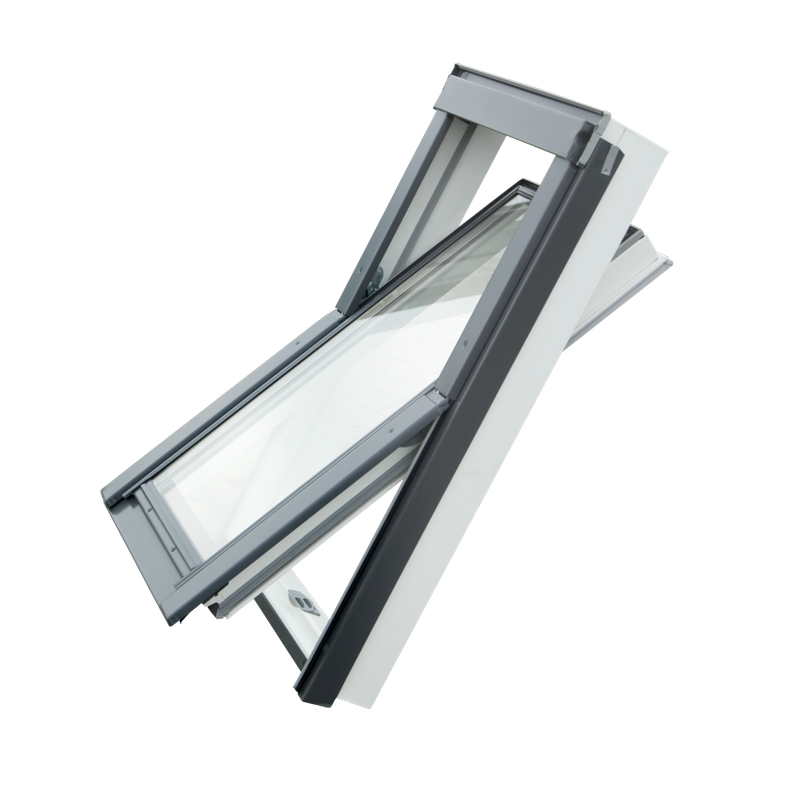

Centre pivot white PVC roof window
Moisture-resistant, easy-to-clean roof window.
The AXIS90 APY B900 white center pivot roof window is crafted from moisture-resistant PVC, making it particularly suitable for use in kitchens and bathrooms. Its smooth surface requires minimal maintenance and hardly any cleaning. Featuring double glazing with two low-emission coatings, it effectively reduces heat loss during winter.
The APY B900 roof window can be installed in roof pitches ranging from 15 to 90 degrees.
Enjoy additional peace of mind with our 10-year warranty.
Available sizes
Download
Window features
Centre pivot white PVC roof window
Optimal thermal insulation
Equipped with 24 mm double glazing, AXIS90 roof windows guarantee good thermal insulation and low emissivity, which reduces heat loss in winter and limits overheating in summer.
Bottom handle
Made of moulded zinc, the handle has three positions - one is fully closed, and two further opening positions allowing ventilation on demand.
Made in Europe
AXIS90 roof windows are manufactured in Europe in a certified (ISO 9001, ISO 14001, OHSAS 18001) production facility, which uses the latest technology to ensure the best industrial, environmental and labour standards.
Technical parameters
Available sizes
- C2A
- 55 x 78 cm
- C4A
- 55 x 98 cm
- F6A
- 66 x 118 cm
- M4A
- 78 x 98 cm
- M6A
- 78 x 118 cm
- M8A
- 78 x 140 cm
- S6A
- 114 x 118 cm
Glazing package
- pane symbol
- Double-Glazed/Single Cell
- Number of Inter-Pane Cells / Number of glasses
- 1/2
- glazing unit design
- 4-16-4H
- Noble gas
- Argon
- low-e coating [ pcs ]
- 2
- Ug [ W/m²K ] for Pane
- 11.0 W/m²K
General features
- Center pivot window, bottom opening
- Yes
- Window Material
- White PVC covering element, internally reinforced
- Frame Height
- A = 120 mm; SOLID = Standard Frame
- Microventilation in Handle (2 position)
- Yes
- Number of Gaskets [ pcs ]
- 4
- Guarantee
- 10 years
- Ventilation Valve
- No
