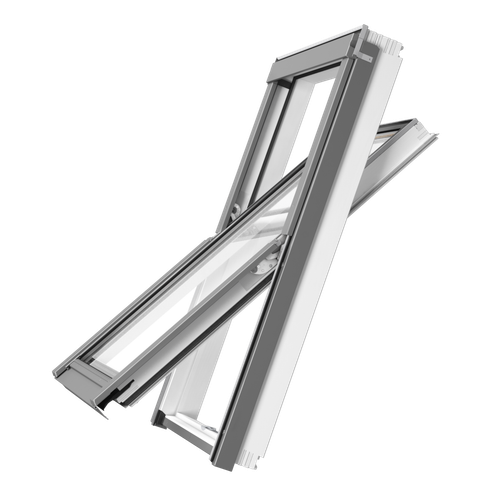

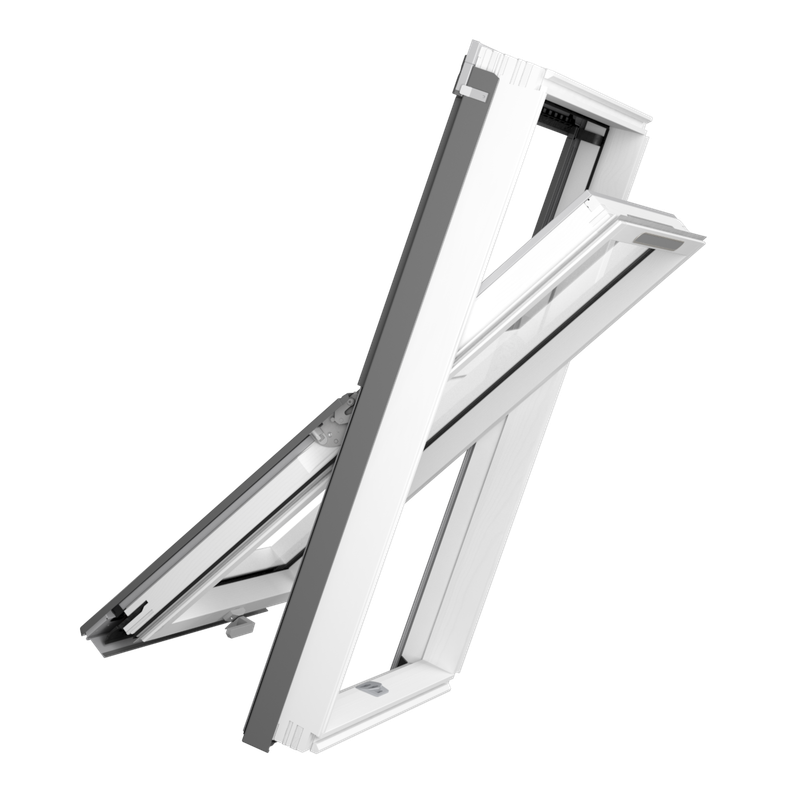

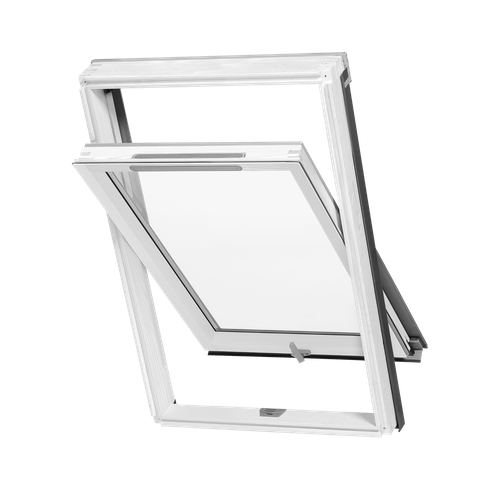

Centre pivot white wooden roof window with ventilation valve
Maximise fresh air and energy efficiency with ease.
The AXIS90 AVY B910 wooden roof window combines a reinforced frame with the added convenience of a built-in ventilation valve at the top of the sash. This thoughtful design allows you to refresh the air in your room without the need to open the window, enhancing comfort while maintaining energy efficiency. With its durable construction and practical features, it is a perfect blend of reliability and convenience.
The AVY B910 roof window can be installed in roof pitches ranging from 15 to 90 degrees.
Enjoy additional peace of mind with our 10-year warranty.
Available sizes
Download
Window features
Centre pivot white wooden roof window with ventilation valve
Optimal thermal insulation
Equipped with 24 mm double glazing, AXIS90 roof windows guarantee good thermal insulation and low emissivity, which reduces heat loss in winter and limits overheating in summer.
Bottom handle
Made of moulded zinc, the handle has three positions - one is fully closed, and two further opening positions allowing ventilation on demand.
Nordic pine wood
The wooden frames are made from sustainably sourced pine wood and treated with fungicide and insecticide protection, followed by a coat of water-based varnish.
Made in Europe
AXIS90 roof windows are manufactured in Europe in a certified (ISO 9001, ISO 14001, OHSAS 18001) production facility, which uses the latest technology to ensure the best industrial, environmental and labour standards.
Technical parameters
Available sizes
- C2A
- 55 x 78 cm
- C4A
- 55 x 98 cm
- F6A
- 66 x 118 cm
- M4A
- 78 x 98 cm
- M6A
- 78 x 118 cm
- M8A
- 78 x 140 cm
- S6A
- 114 x 118 cm
Glazing package
- pane symbol
- Double-Glazed/Single Cell
- Number of Inter-Pane Cells / Number of glasses
- 1/2
- glazing unit design
- 4-16-4H
- Noble gas
- Argon
- low-e coating [ pcs ]
- 2
- Ug [ W/m²K ] for Pane
- 1.0 W/m²K
General features
- Window Material
- Pine
- Frame Height
- A = 120 mm; SOLID = Standard Frame
- Microventilation in Handle (2 position)
- Yes
- Number of Gaskets [ pcs ]
- 4
- Guarantee
- 10 years
- Ventilation Valve
- Yes
