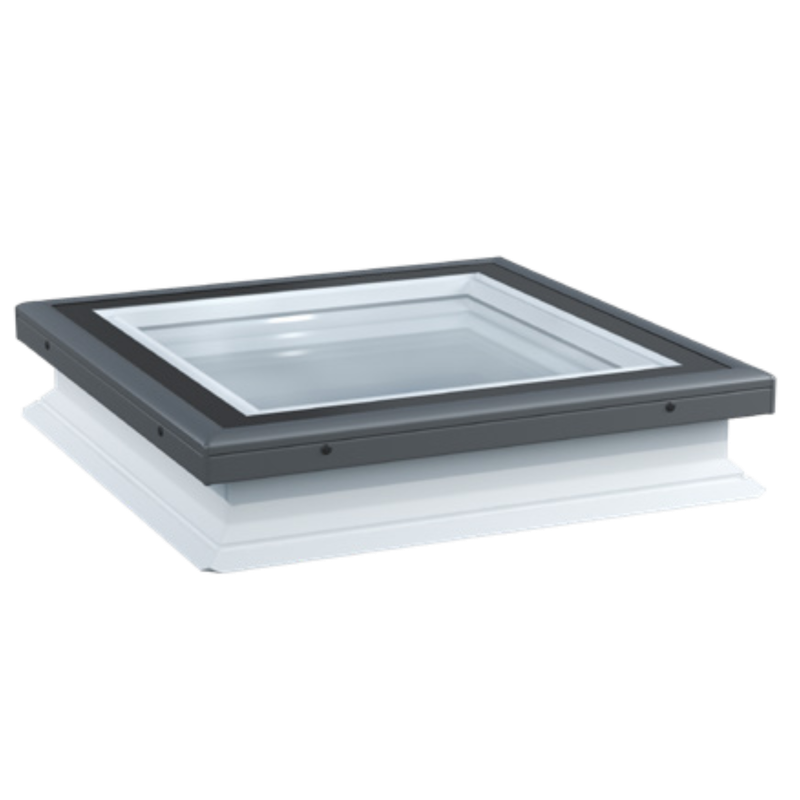

Fixed Glass Roof Window
Enhanced light and safety for your flat roof.
To truly unlock the full potential of your home, bringing in more natural light is key. But what if you have a flat roof instead of a sloping one? In this case, the AXIS90 flat roof window is the perfect solution, designed to flood your space with light while maintaining a sleek, functional design.
Featuring toughened external glass for protection against hail damage and laminated internal glass for added safety in case of accidental breakage, it ensures both durability and peace of mind.
The AXIS90 flat roof window can be installed in roof pitches ranging from 5 to 15 degrees.
Enjoy additional peace of mind with our 10-year warranty.
Technical parameters
Available sizes
- 6060
- 60 x 60 cm
- 6090
- 60 x 90 cm
- 8080
- 80 x 80 cm
- 9090
- 90 x 90 cm
- 90120
- 90 x 120 cm
- 100100
- 100 x 100 cm
- 100150
- 100 x 150 cm
- 120120
- 120 x 120 cm
Properties
- roof pitch angle
- 5–15 °
Glazing package
- pane symbol
- B600
- Number of Inter-Pane Cells / Number of glasses
- 2 / 3
- glazing unit design
- 4-12-3HS-12-3H
- Noble gas
- Argon
- low-e coating [ pcs ]
- 2
- Ug [ W/m²K ] for Pane
- 0,8
General features
- Frame Height
- 120 mm
- Guarantee
- 10
