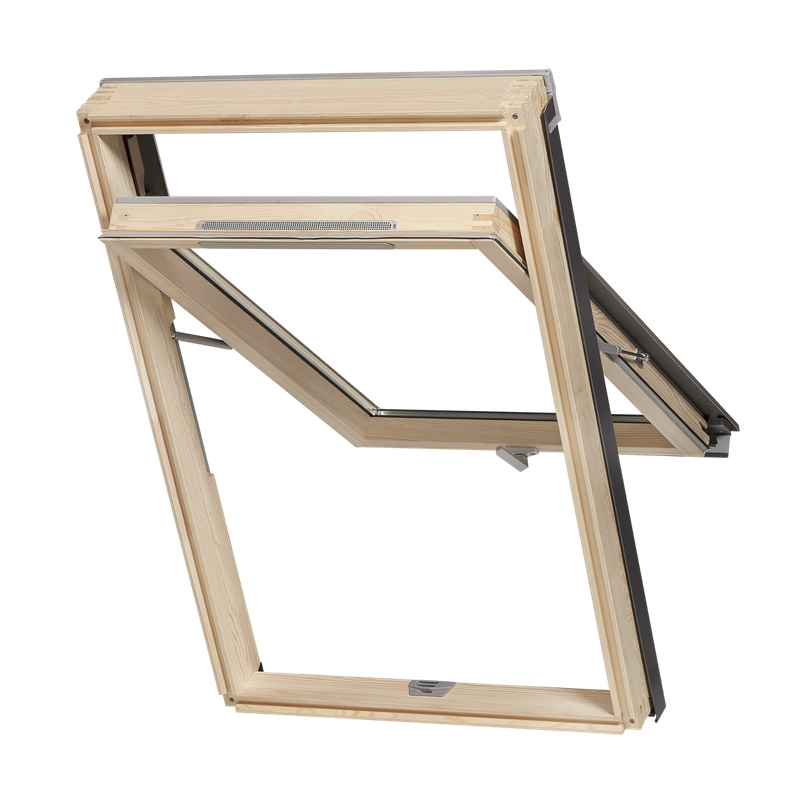

High pivot wooden roof window
Panoramic views meet easy emergency access.
The AXIS90 MOE B1000 roof window sets itself apart with its elevated pivot point: The sash is supported at three-quarters of the frame height and opens with the help of telescopic lifters. This design not only provides a wide panoramic view but also allows for easy evacuation onto the roof in case of an emergency.
The term “MOE” stands for “means of escape”, indicating that this roof window is specifically designed for emergency exits. Please note that it serves as a means of escape only for sizes above 78 x 98 cm.
The MOE B1000 roof window can be installed in roof pitches ranging from 15 to 55 degrees.
Enjoy additional peace of mind with our 10-year warranty.
Available sizes
Download
Window features
High pivot wooden roof window
Optimal thermal insulation
Equipped with 24 mm double glazing, AXIS90 roof windows guarantee good thermal insulation and low emissivity, which reduces heat loss in winter and limits overheating in summer.
Bottom handle
Made of moulded zinc, the handle has three positions - one is fully closed, and two further opening positions allowing ventilation on demand.
Nordic pine wood
The wooden frames are made from sustainably sourced pine wood and treated with fungicide and insecticide protection, followed by a coat of water-based varnish.
Made in Europe
AXIS90 roof windows are manufactured in Europe in a certified (ISO 9001, ISO 14001, OHSAS 18001) production facility, which uses the latest technology to ensure the best industrial, environmental and labour standards.
Technical parameters
Available sizes
- C2A
- 55 x 78 cm
- C4A
- 55 x 98 cm
- F6A
- 66 x 118 cm
- M4A
- 78 x 98 cm
- M6A
- 78 x 118 cm
- M8A
- 78 x 140 cm
- S6A
- 114 x 118 cm
Glazing package
- Number of Inter-Pane Cells / Number of glasses
- 1 / 2
- glazing unit design
- 33.2-14-4H
- Noble gas
- Argon
- low-e coating [ pcs ]
- 2
- Ug [ W/m²K ] for Pane
- 1.0 W/m²K
General features
- Window Material
- Pine
- Frame Height
- A = 120 mm; SOLID = Standard Frame
- Microventilation in Handle (2 position)
- Yes
- Number of Gaskets [ pcs ]
- 4
- number of paint layers
- 2
- Guarantee
- 10 years
- Ventilation Valve
- Yes
- High pivot, bottom opening
- Yes
